Costco 6 Volt Batteries

Accessories Hi-lite — By on January 17, 2011 at 9:04 am

I’ve been a long time fan of 6 volt batteries for my trailer. The amp hours in a pair of 6 volt batteries is about double that of one 12 volt deep cycle battery and with proper maintenance will outlive them as well. My last set of Trojan T-105′s lasted 7 years and were sold with my trailer so for all I know they are still going strong. By comparison, my friends with 12 volt batteries seem to change them out every 3 years.

When it came time to buy new batteries the plan was to buy another set of Trojans, that is until I looked at the price. My local Battery Systems store wanted $145 a piece, ouch! So I did some research and found that a lot of people were having good luck with Costco’s 6 volt batteries. So at $79 a piece I thought I’d give em a try.

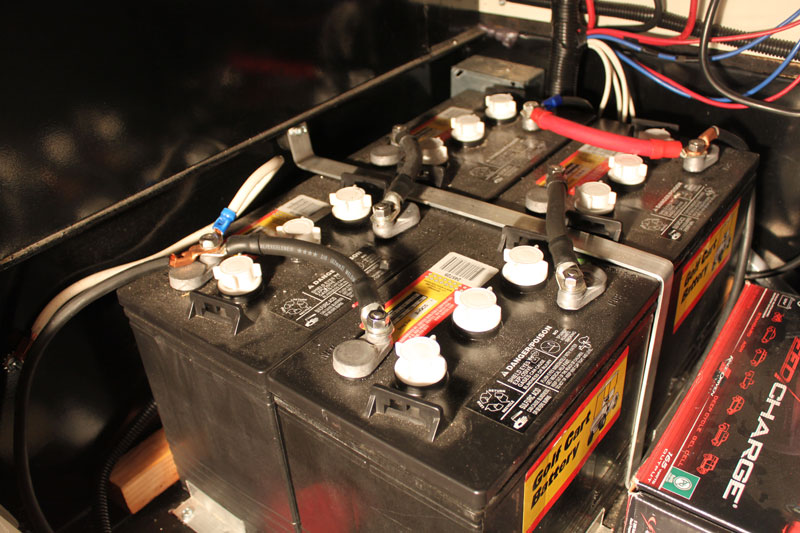

After picking up the batteries I went down to my local A1 Battery store in Visalia, Ca. to have some custom length interconnect cables made from 4/0 welding wire and 3/8 lugs.

Next I connected the batteries in series. Now a lot of people get confused when trying to understand how to wire 6 volt batteries to make one big 12 volt battery. Buts its really not that complicated. Take two batteries at a time and connect them together from negative to positive as in the following diagram

6 volt diagram

Now do the same for the second set. Now you have two big 12 volt batteries. Next, connect the two sets together like you would two 12 volts; negative to negative, positive to positive. Study the following diagram and the light bulb will come on.

6 volt battery diagram

Tags: 6 volt batteries, 6 volt battery diagram, 6 vs 12 volt batteries, Costco golf cart batteries, Trojan T-105
